Product Introduction

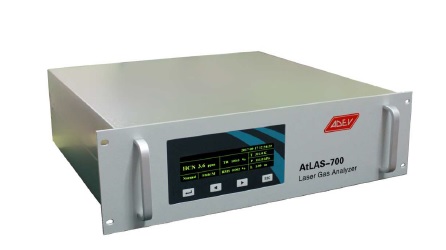

The TDLAS technology has been developed into a kind of high sensitivity, high resolution, fast response time and high selectivity of gas detection technology, widely used in industrial process monitoring control. AtLAS-700 is a rack type tunable laser gas analyzer for industrial inline and environmental monitoring. The analyzer combine the TDLAS technology and multiple reflection long optical path technology that can measure a variety of gas, including O2, CO, CO2, H2O, H2S, HCl, HF, NH3, CH4, C2H2, C2H4.


Product Application

  • FCC catalyst regeneration
  • SCR NH3 injection
  • Desulphurization efficiency
  • Explosive process gas,
  • Reactant ratio optimization
  • HCL, HF emissions
  • Flue gas measurement outlet of process heaters, fractionators, thermal crackers, utility boilers & incinerators
  • Sulfur recovery
  • Slip Ammonia control in deNOx plants
  • Combustion control for reheating furnace, heat treatment furnace, forging furnace
  • Converter gas recycle
  • Blast furnace gas
  • Coke oven gas
  • Flue gas of sintering, pelletizing
  • Coal injection safety control
  • Electric tar precipitator (ETP) safety control
  • CDQ circulating gas
  • Gas tank safety control


  • Compact Structure, Easy Integration
  • Strong anti-interference capability
  • Low detection limit, high sensitivity
  • Excellent adaptability
  • Multi gas Analysers
